We are India's leading manufacturer, supplier, and exporter of E1FUNV Cable Glands.

Type :

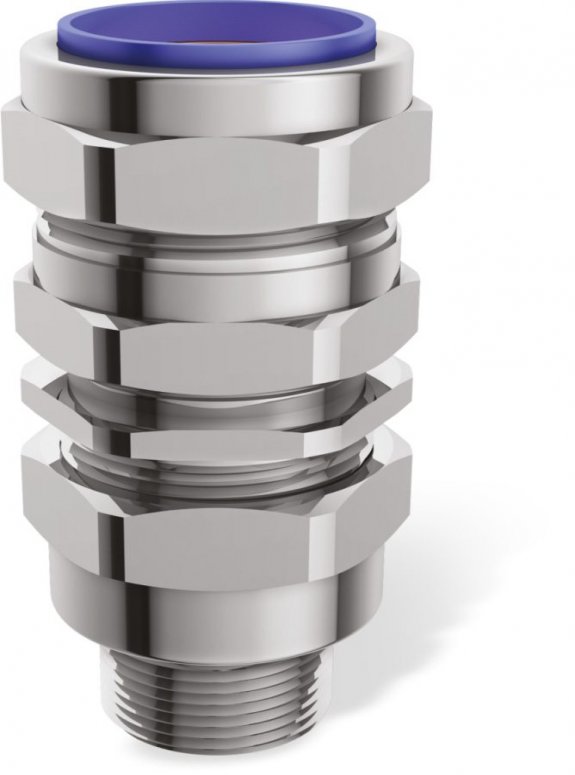

E1FUNV Double Compression Cable Gland.

Cable Types :
For all types of IEC armoured cables.

Application :

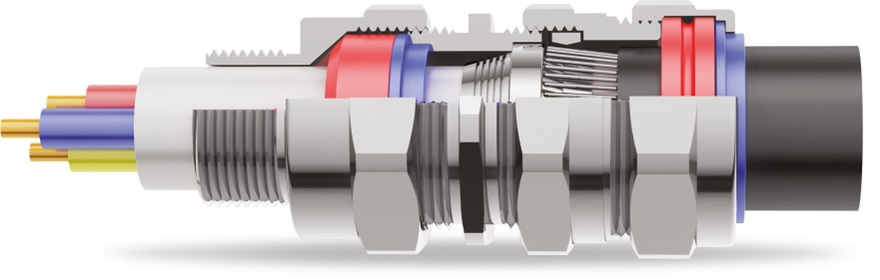

Provides a flameproof (Type ”D”) seal on the cable inner bedding. Allows mechanical cable retention and earth continuity via the cable armor termination. Reversible armour cone and clamping ring arrangement facilitates remote make off and enables the cable to be disconnected from the equipment. Stepped cone is suitable for SWA cables. Grooved cone is suitable for all other approved armored cables.

Option Thread :
Metric, NPT, BSP, BSPT.

Gland Material :
Brass (CuZn39Pb3), Stainless Steel (304 or 316L), Aluminium (6082).

IP Rating :
IP66 & IP67.

Sealing Ring :
Double Compression Sealing (Sealing on both outer and inner sheath).

Operating Temperature :
Standard Seals (Nitrile): -20°C To 80°C.
on Request (Silicone): -60°C To +180°C.

Finish :
Natural Brass or Nickel Plated or Electroless Nickel Plated.

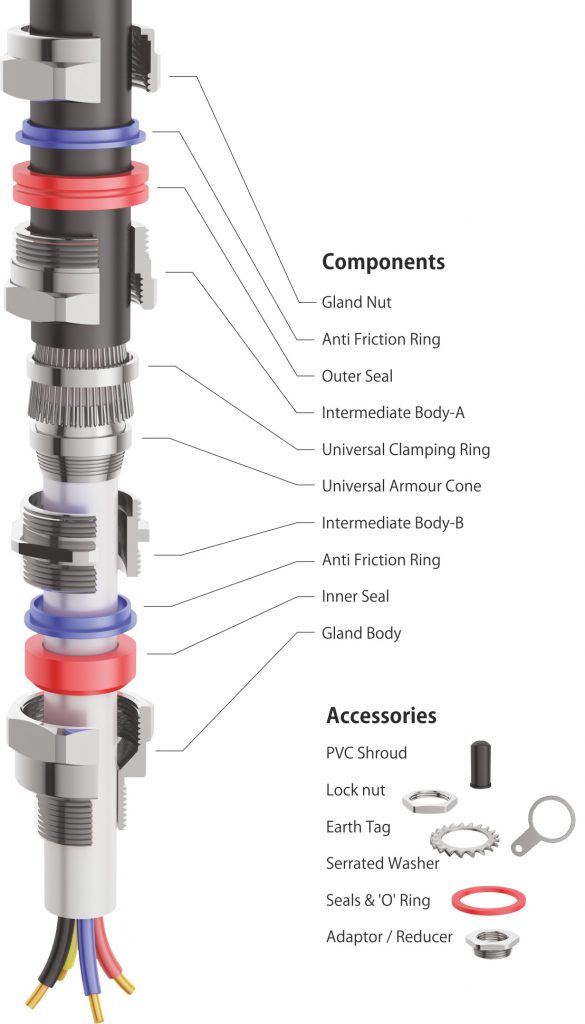

Accessories :
PVC S/ LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer.
